hangboard
A hangboard, also called a fingerboard, is a training tool for climbers consisting of
various holds used to improve grip strength and finger endurance
Form Development
The goal was to create edges that were comfortable to hang upon and that replicated the form of outdoor rock holds.

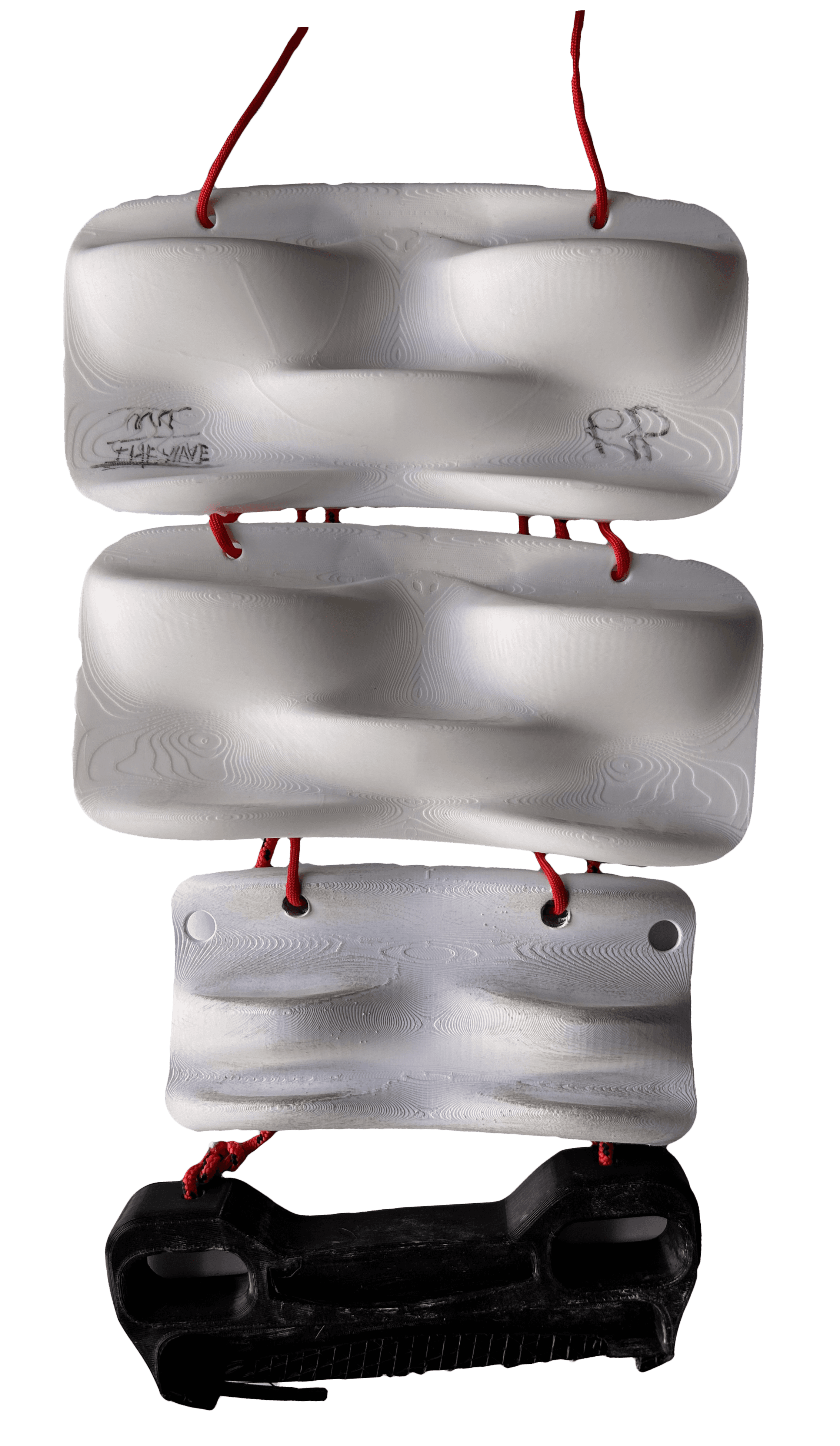

Through 3D printing I found a method to create forms sturdy enough to hang just enough body weight to test the boards.

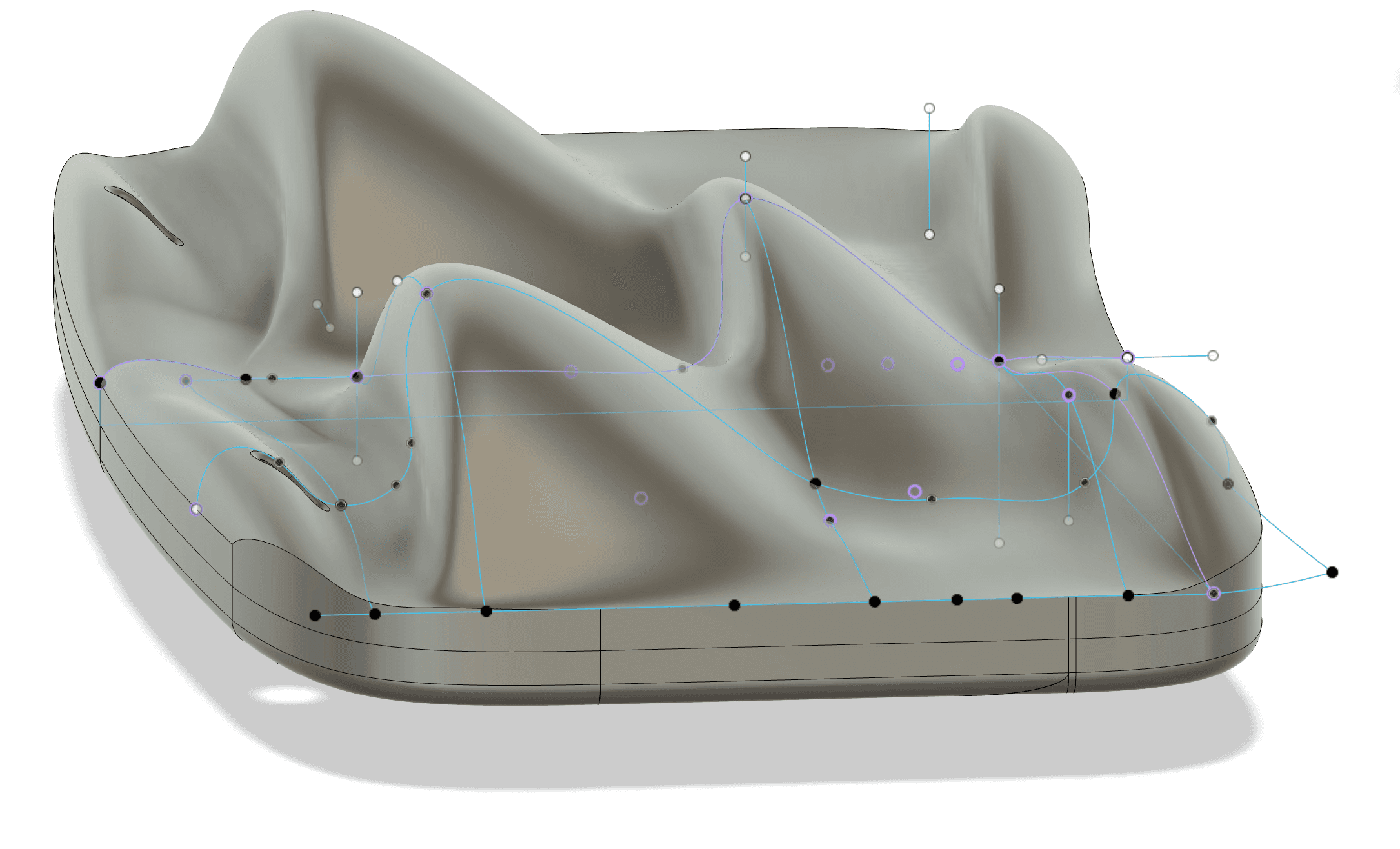

I used a grid of intersecting sketches to manipulate
the surface very precisely to ensure edges were flat
and specific dimensions (30mm, 20mm and 12mm).

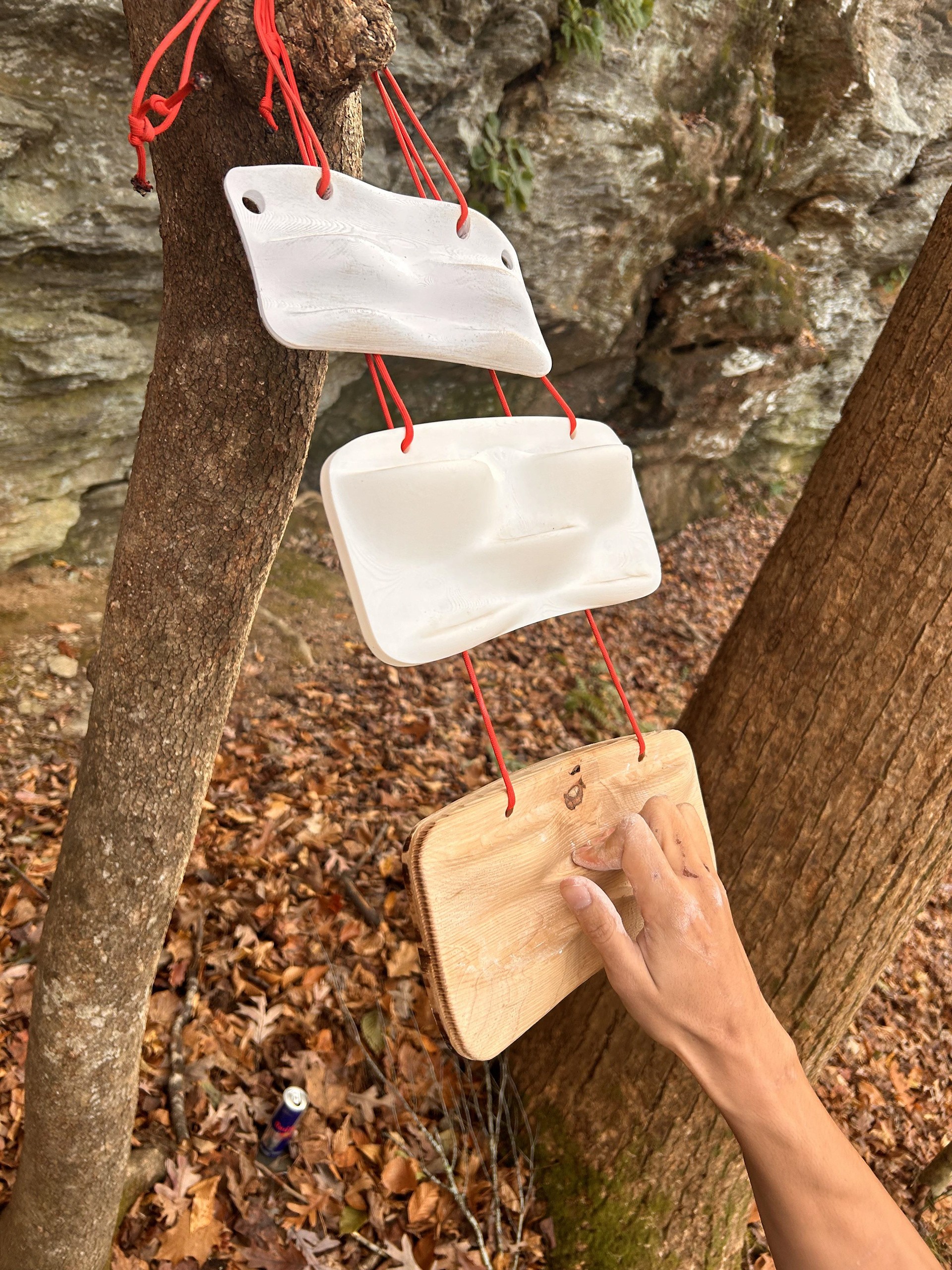

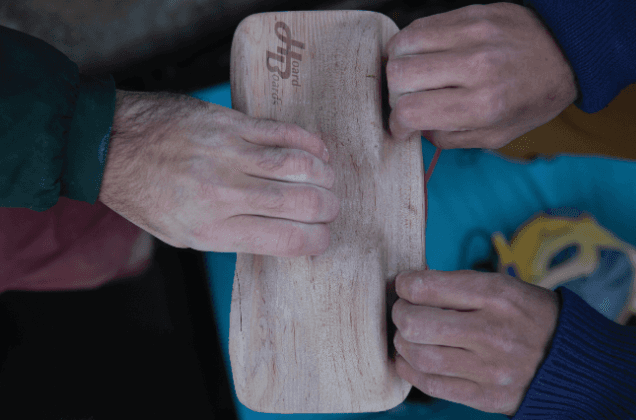

User Testing
With each prototype I found climbers to test the feel of each
board and give feedback for possible variations until I found
the right selection of edges and the best positioning.
42
Test Subjects
8
Prototypes
20
Sold

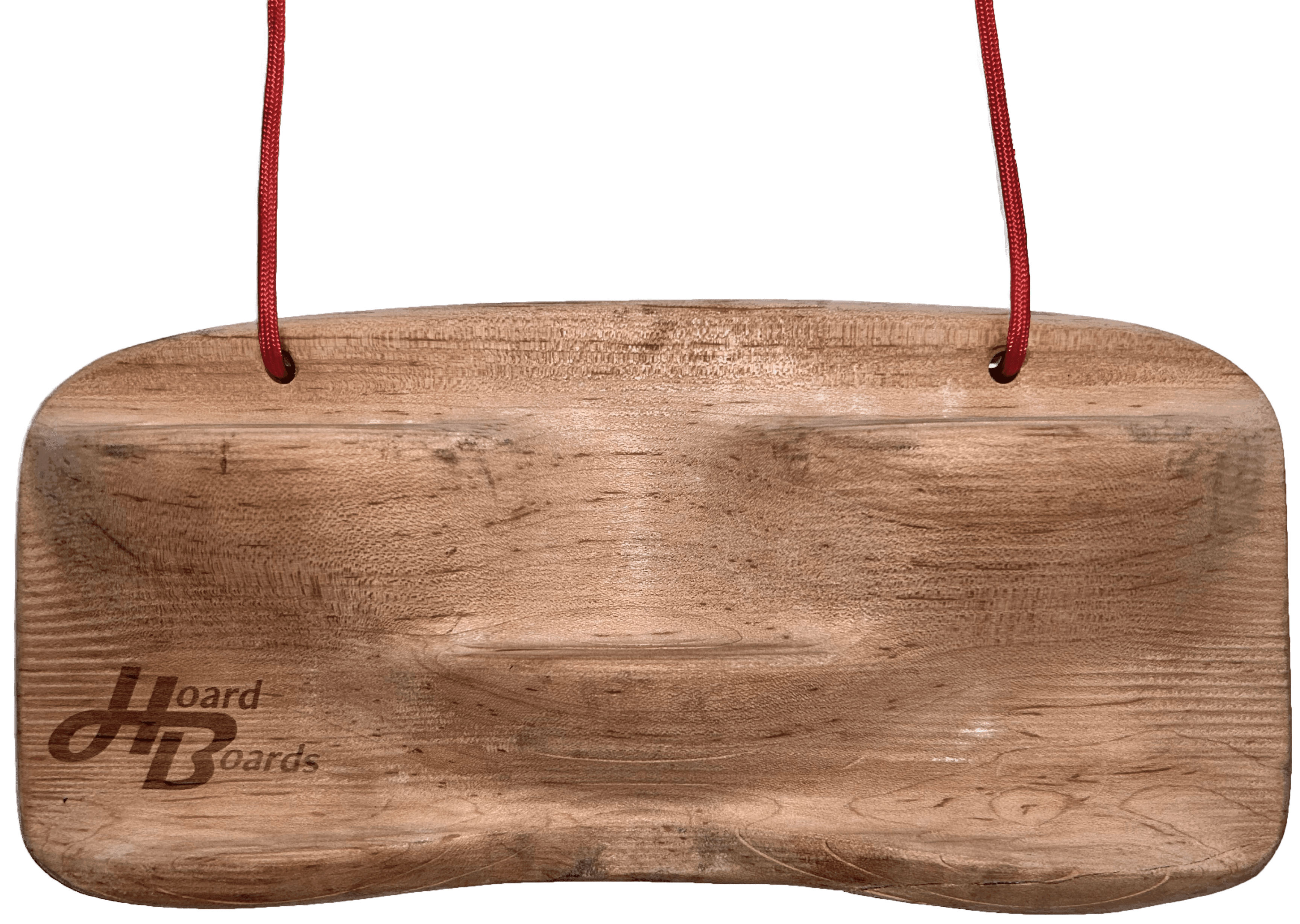

Hoard Boards
Despite the sloping edges the Hoard Boards
hangboard was developed with a fulcrum
mechanism that makes the board hang against
your hand rather than bending the other way
under weight
This is to improve the wrist position and reduce
wasted energy trying to keep the board on your
fingers so it doesn't slip out.
Metolius

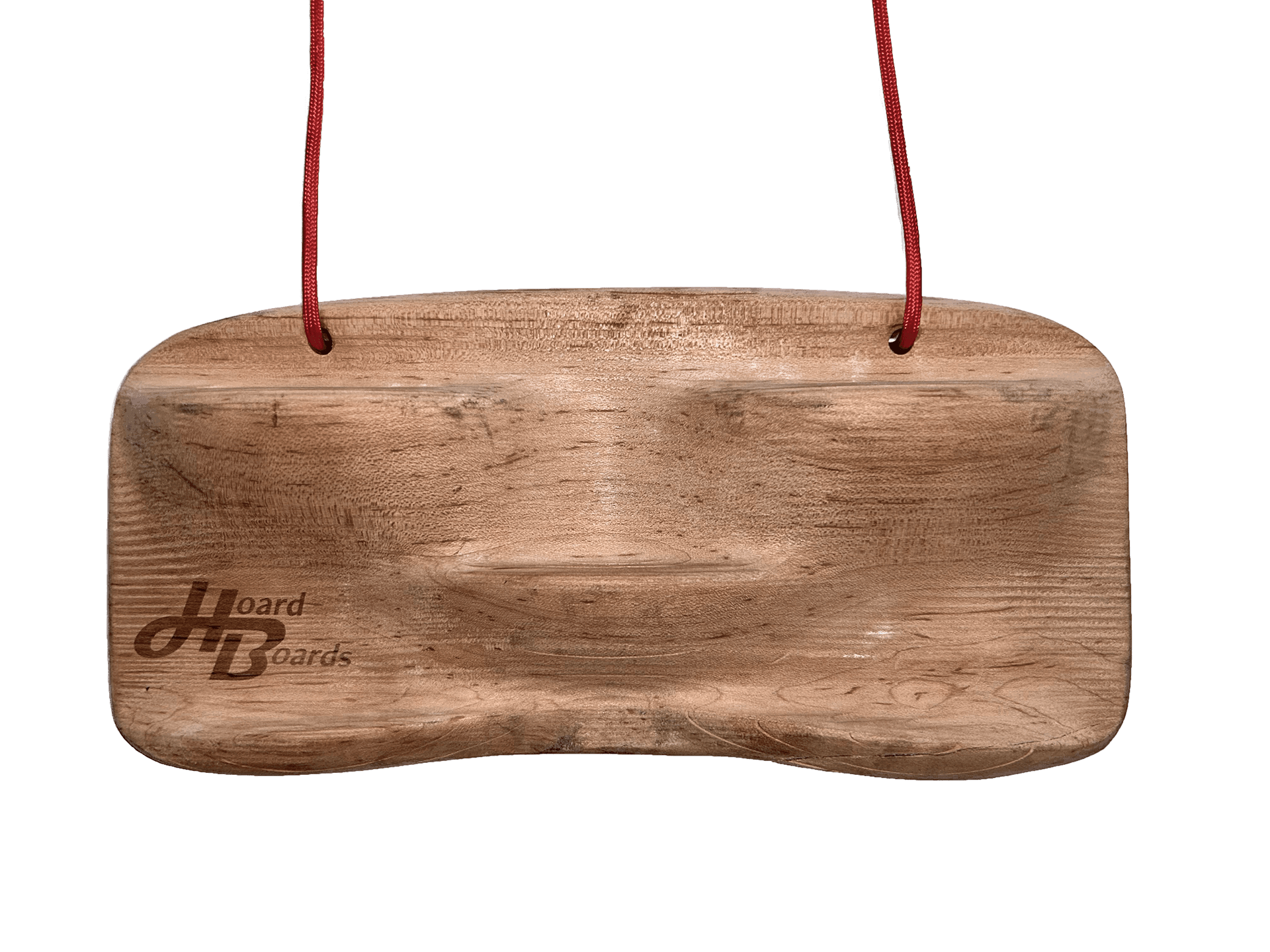

Manufacturing

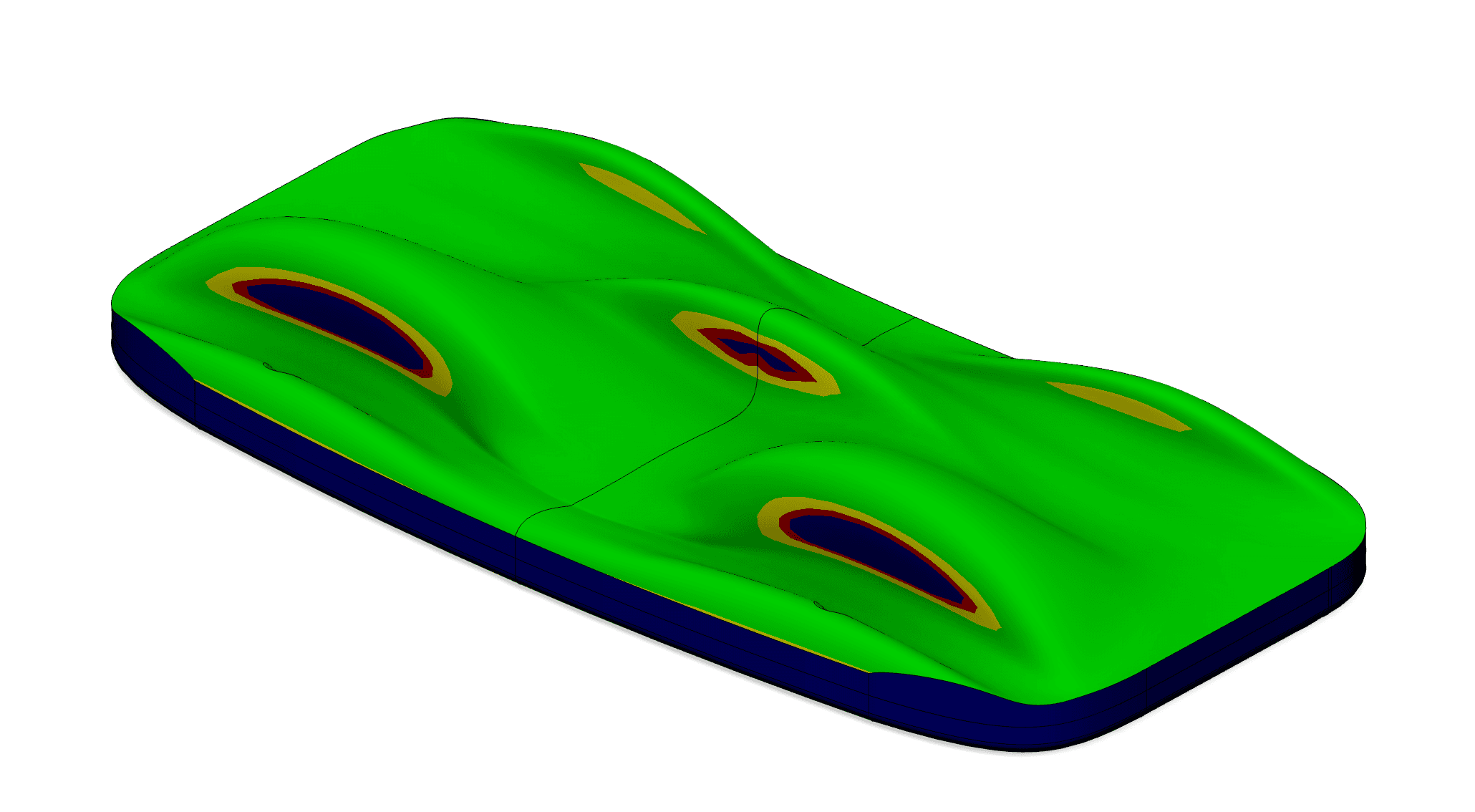

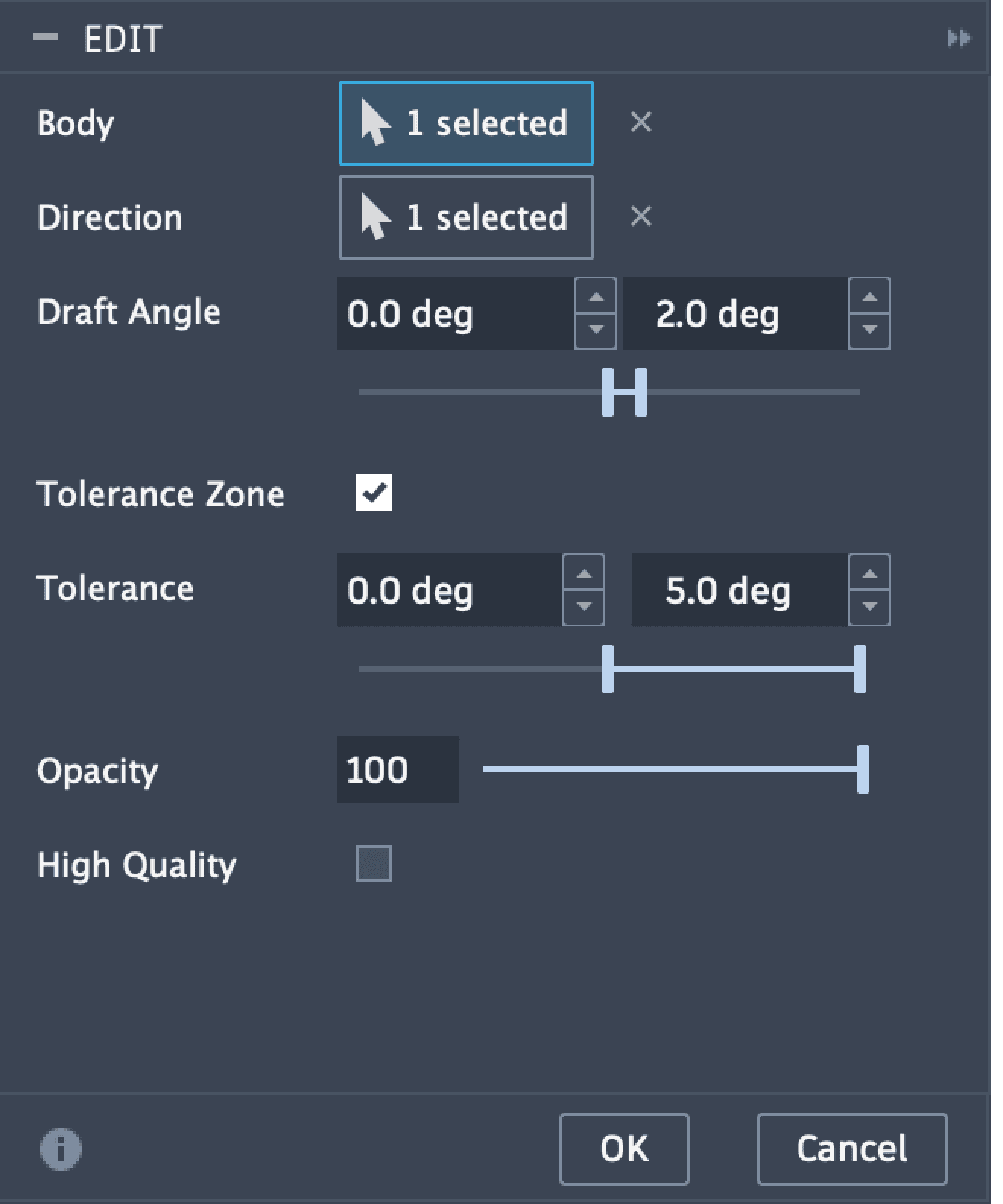

The boards were carved using a 3 axis CNC machine, conducting a draft analysis would prove that the form was manufacturable. Further the holes for the paracord had to be 1/2 inch in diameter so that the bit could go through without further processing required.

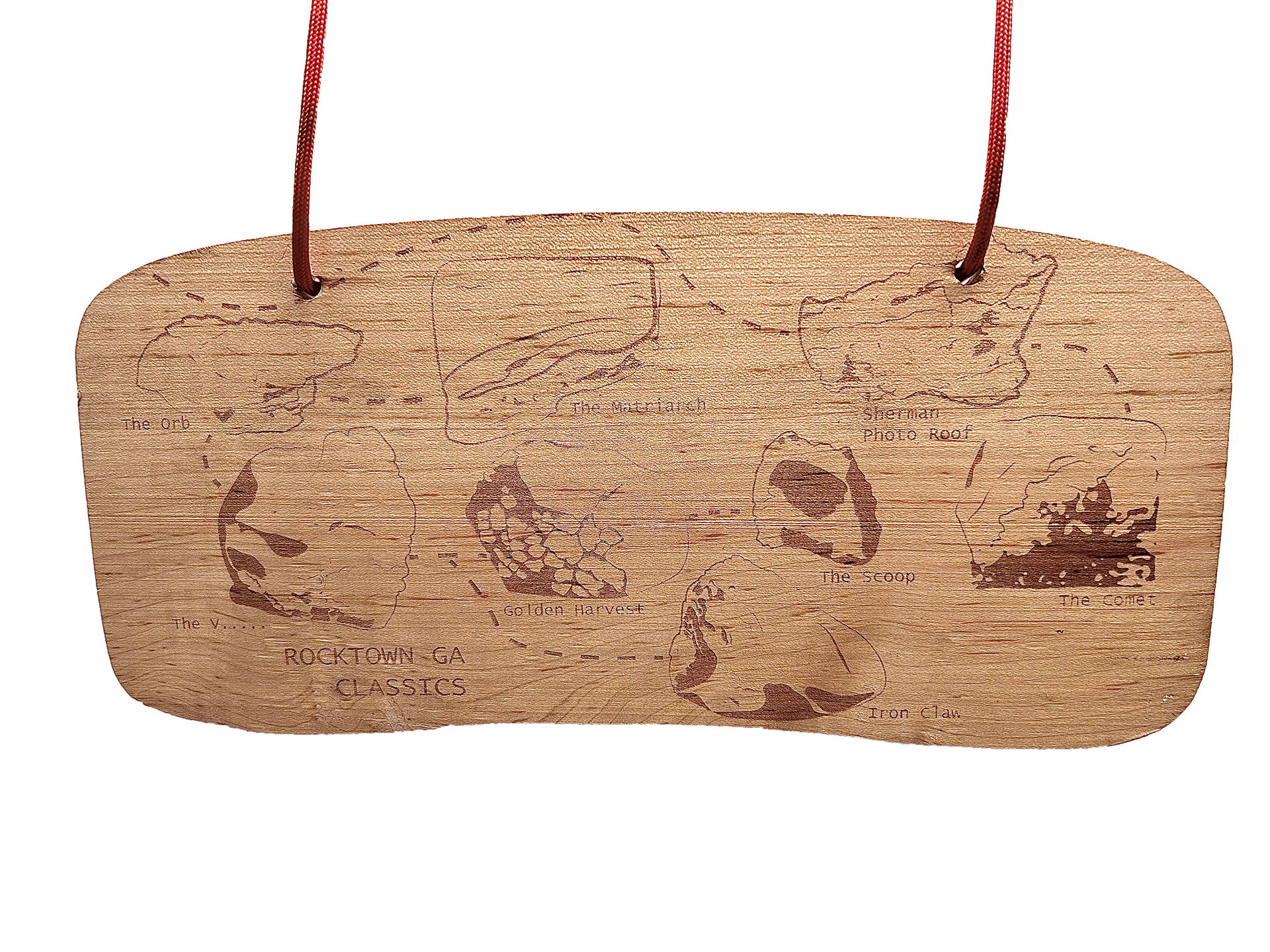

Laser Etching
The Hoard Boards whitespace relies in collectible, limited edition boards. With a potential partnership with the South Eastern Climbing Coalition, Hoard Boards will have different collectible maps etched on the back of them of popular climbing areas in the South East.
Competitor Brand Analysis
brand values:
The
ERGONOMICS
CULTURE
SUSTAINABILITY
By prioritizing emotional connection and regional culture alongside performance, Hoard Boards differentiates itself from other hangboard brands, resonating deeply with climbers who take pride in the traditions and identity of the Southeast
